OPTIONAL CONSTRUCTION
HOOD HOUSING
Lanz semi-custom approach allows flexibility for constructing interior and exterior hood housings to conceal HVAC ducting on the inside and outside of our cabinets.
Exterior: Hood Housing conceals HVAC when soffits aren’t present and do not have recirculating vent hoods unless you can vent through the back wall behind the cabinet.
Interior: Hood Housing provides a neat and clean box around the HVAC vent inside the cabinet.
INTERIOR HOOD HOUSING
- Conceals HVAC ducting inside of upper cabinet over microwave or exhaust fan
- 15 ¹³⁄₁₆” W face x 10 ⁹⁄₁₆” D sides x height of upper cabinet
- Face of box constructed of ¼” white TFL faced MDF
- Sides are constructed of ⅝” case core material with white TFL overlay matching Lanz standard cabinet interiors.

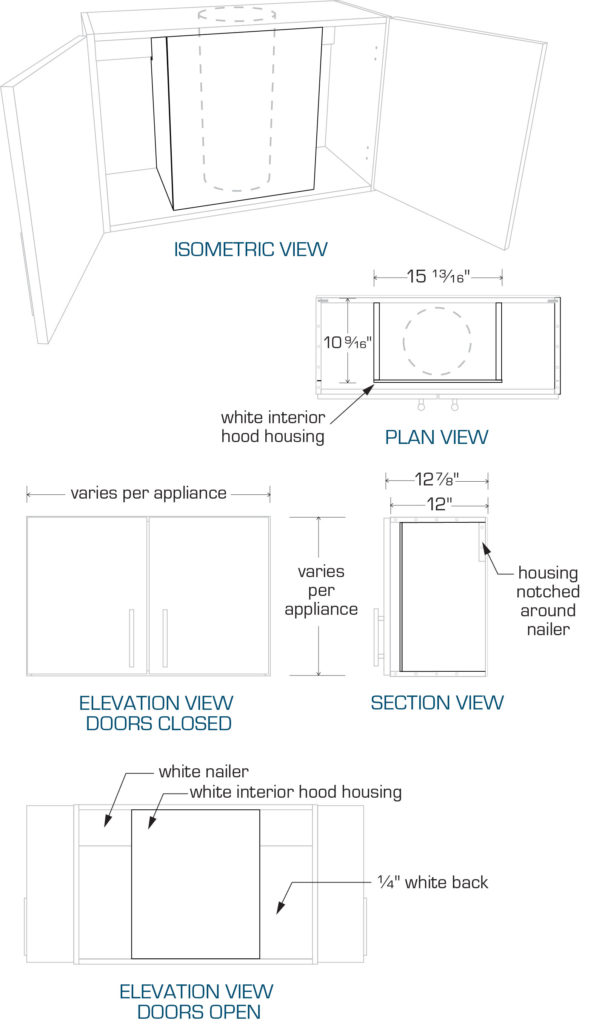

ELEVATION VIEW
PLAN VIEW
SECTION VIEW
EXTERIOR HOOD HOUSING
- Conceals HVAC ducting above upper cabinet over microwave or exhaust fan when there is no soffit
- Standard size is 18″ W x 12″ D x height between upper cabinets and ceiling
- Face and sides are constructed of ⅝” case core or matching door material

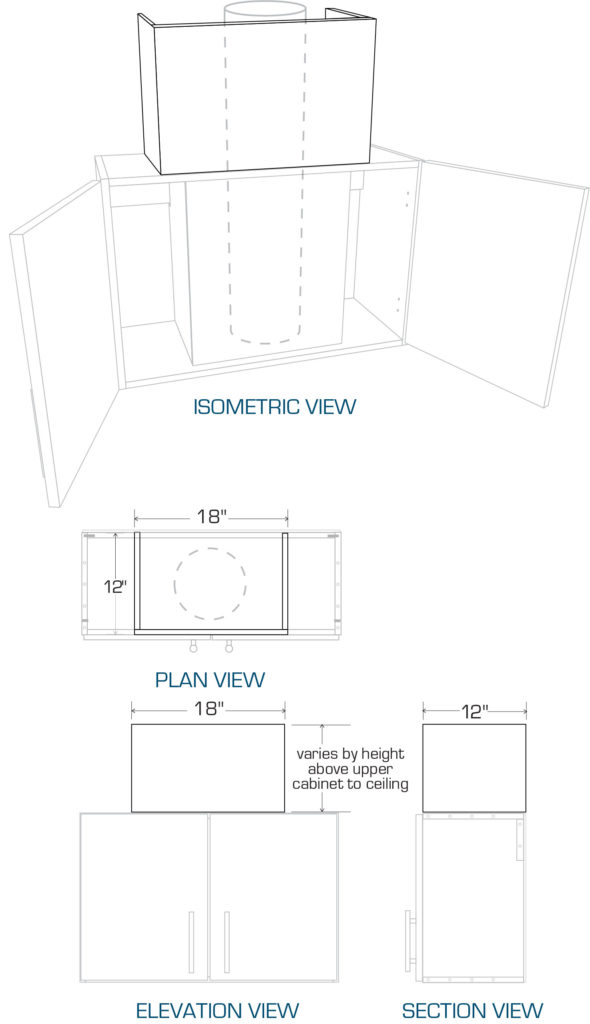

ELEVATION VIEW
PLAN VIEW
SECTION VIEW
After HVAC concealment with exterior hood housing
