DRAWERS
Our standard metal drawer box with integrated standard-close guides is our best value. Upgrade to a premium Slim Wall metal box with integrated soft-close undermount full-extension guides to get more out of your market rate units. Lanz also offers drawers in particle board and plywood construction with full-extension and soft-close optional guides to meet special requirements.
VALUE DRAWERS
Our standard metal-sided drawer box is our best value. Standard close, three-quarter extension guides are integrated into the drawer for a clean profile when drawers are open.

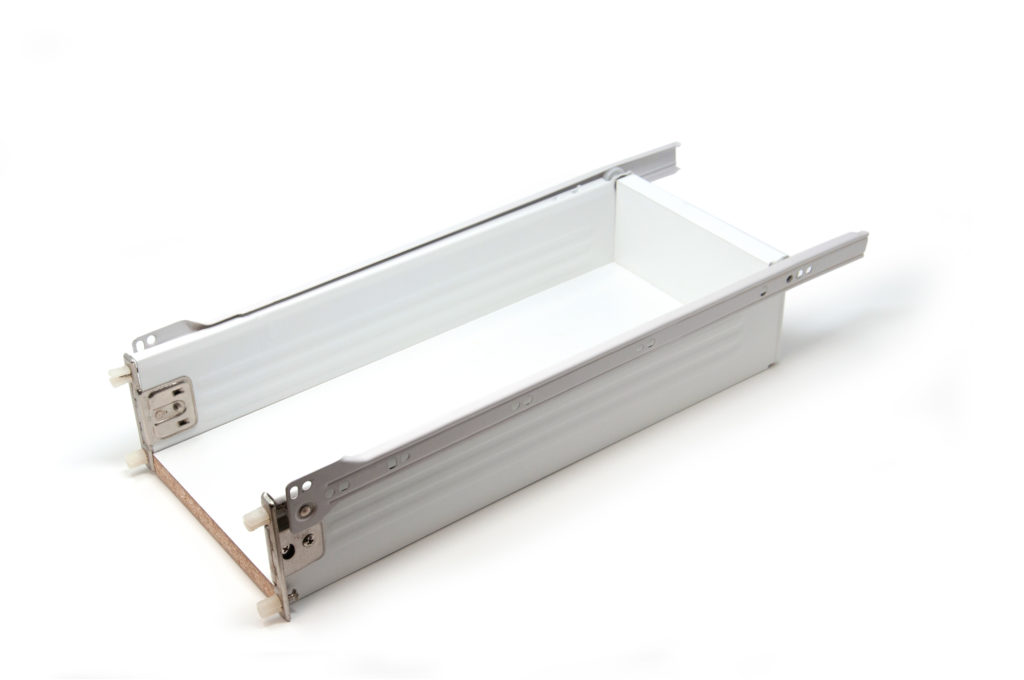

Standard drawer
(2.5" high sides)

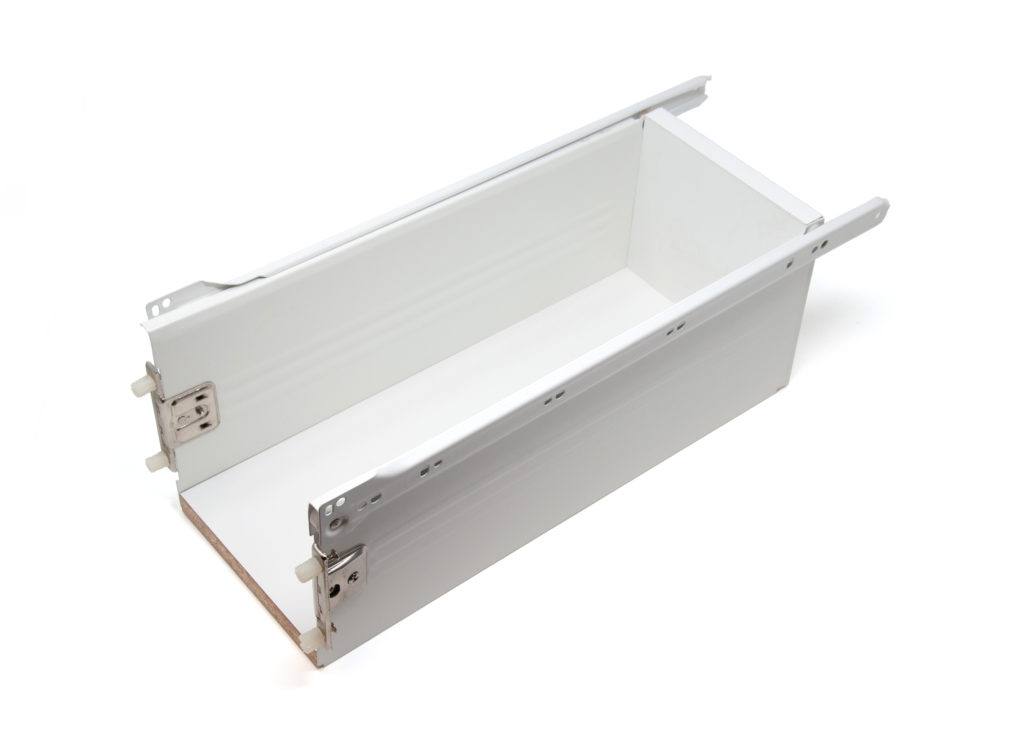

DEEP drawer
(5.25" high sides)

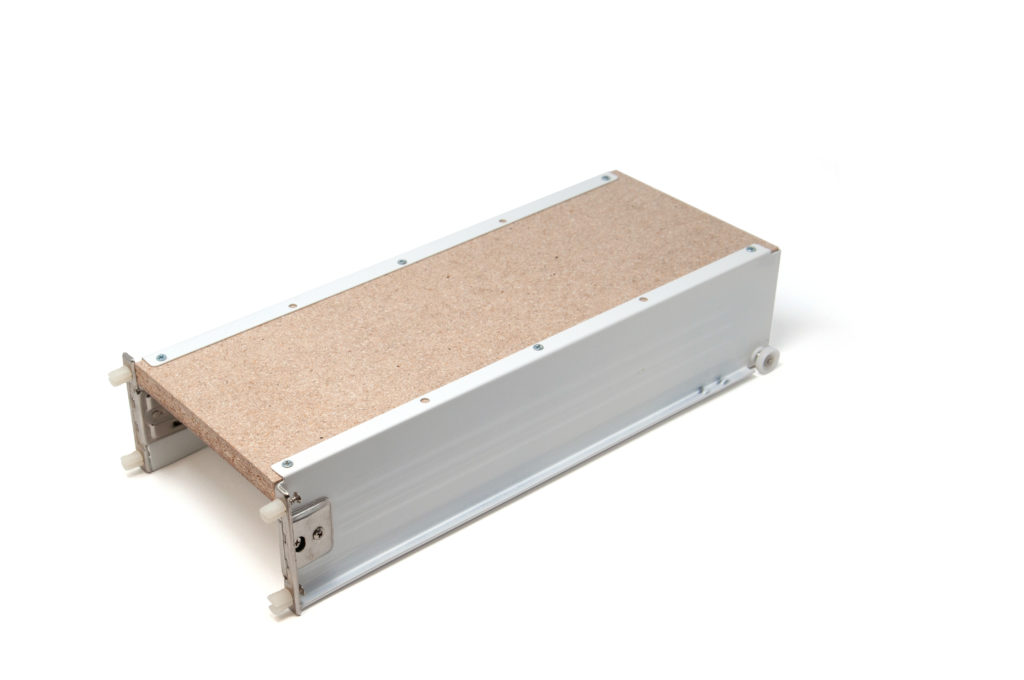

UNDERSIDE OF drawer
WITH INTEGRATED GUIDES
DRAWER & GUIDE FEATURES
- Standard self-close, silent system
- Three-quarter extension
- 55 lb. dynamic load capacity
- White metal sides, ⅝” particle board, MDF, or plywood back and bottom
- Lift-out disconnect
- Full adjustment (up, down, left, right)
- 24″ max drawer width
- 2.5″ high sides, Deep drawer sides are 5.25″ high
- KCMA, BHMA, BIFMA
WITH INTEGRATED GUIDES
DRAWER FEATURES
- Standard self-close, silent system
- Three-quarter extension
- 55 lb. dynamic load capacity
- White metal sides, ⅝” particle board, MDF, or plywood back and bottom
- Lift-out disconnect
- Full adjustment (up, down, left, right)
- 24″ max drawer width
- 2.5″ high sides, Deep drawer sides are 5.25″ high
- KCMA, BHMA, BIFMA
Standard drawer
(2.5" high sides)
DEEP drawer
(5.25" high sides)
UNDERSIDE OF drawer

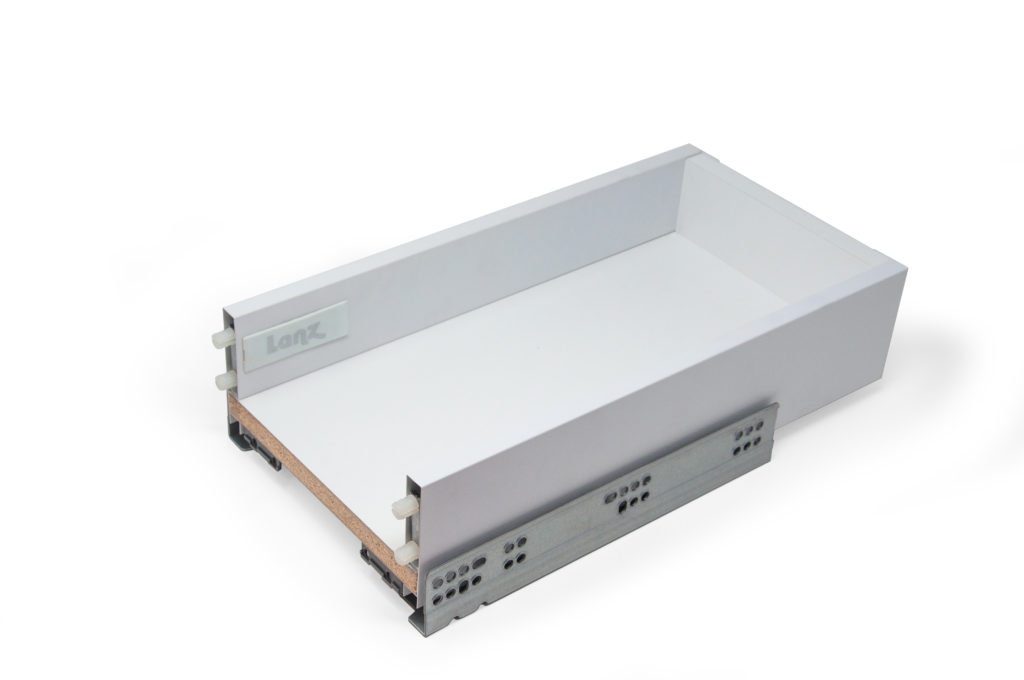

PREMIUM DRAWERS
Upgrade to a premium Slim Wall metal box with integrated soft-close full-extension guides to get more out of your market rate units. The sturdy square profile metal sides have a classic wood construction look but are lighter. Concealed drawer guides allow a clean profile when the drawers are open.
Standard drawer
(2.5" high sides)
DEEP drawer
(5.25" high sides)

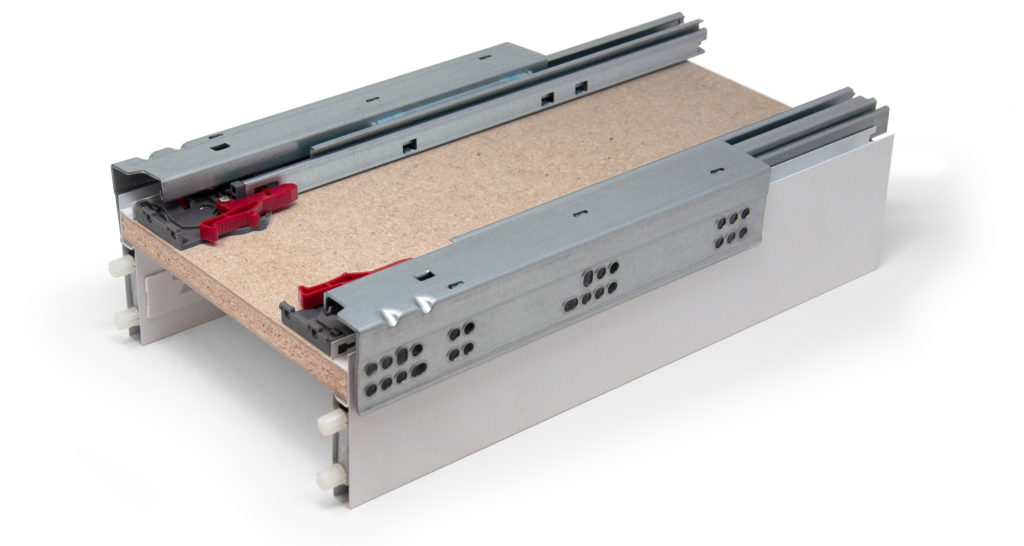

UNDERSIDE OF drawer
WITH INTEGRATED GUIDES
DRAWER & GUIDE FEATURES
- soft-close, silent system
- full-extension, undermount guides
- 100 lb. dynamic load capacity
- white double-walled metal sides,
⅝” particle board, MDF, or white wrapped plywood back and bottom - full adjustment (up, down, left, right)
- 36″ max drawer width
- 2.5″ high sides, Deep drawer sides are 5″ high
- KCMA, BHMA, BIFMA
WITH INTEGRATED GUIDES
DRAWER FEATURES
- soft-close, silent system
- full-extension, undermount guides
- 100 lb. dynamic load capacity
- white double-walled metal sides,
⅝” particle board, MDF, or white wrapped plywood back and bottom - full adjustment (up, down, left, right)
- 36″ max drawer width
- 2.5″ high sides, Deep drawer sides are 5″ high
- KCMA, BHMA, BIFMA
Standard drawer
(2.5" high sides)
DEEP drawer
(5.25" high sides)
UNDERSIDE OF drawer
CONSTRUCTION
OPTIONS
HALF CAPTIVE
The drawer sides are routed to receive the drawer bottom, the captive on two of the four sides. Available in particle board and plywood drawer box construction. For side-mounted, full-extension guides only.
FULL CAPTIVE
The drawer sides, front and back are routed to receive the drawer bottom, thus captive on all four sides. Available in particle board and plywood drawer box construction. Required for undermounted, full-extension soft close drawer guides

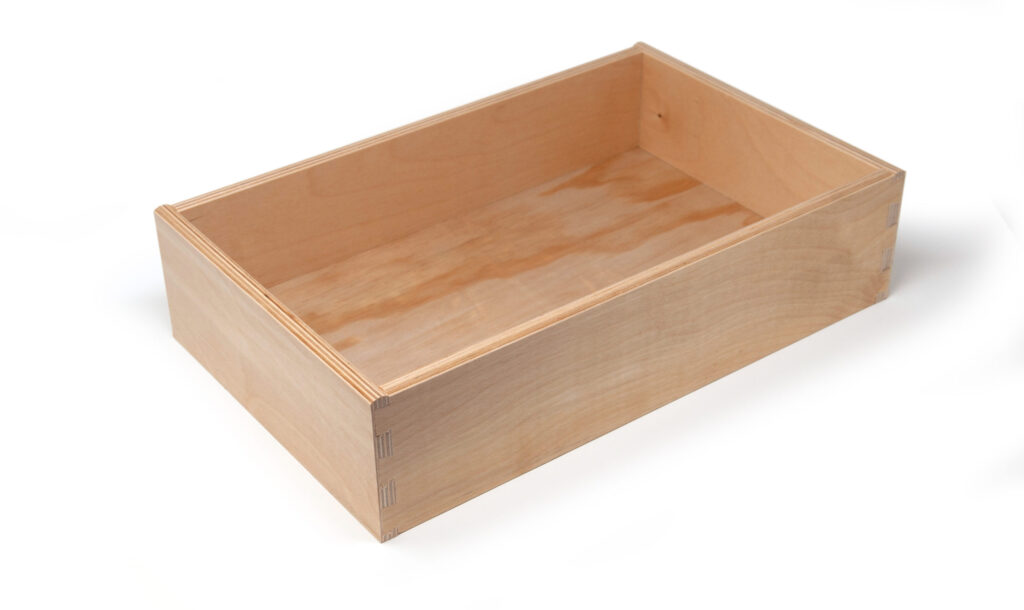

DOVETAIL
Available in ½” thick natural plywood only, dovetailed drawers are full captive and can receive side or under mounted drawer guides.
MATERIAL OPTION
PLYWOOD
- ½” thick natural birch with a ¼” thick natural plywood drawer bottom
- ⅝” white vinyl wrapped sides with a ¼” thick drawer bottom (not available in dovetail construction).
MATERIAL OPTION
PARTICLEBOARD
- ⅝” thick white TFL-faced particleboard. (Not available in dovetail construction)

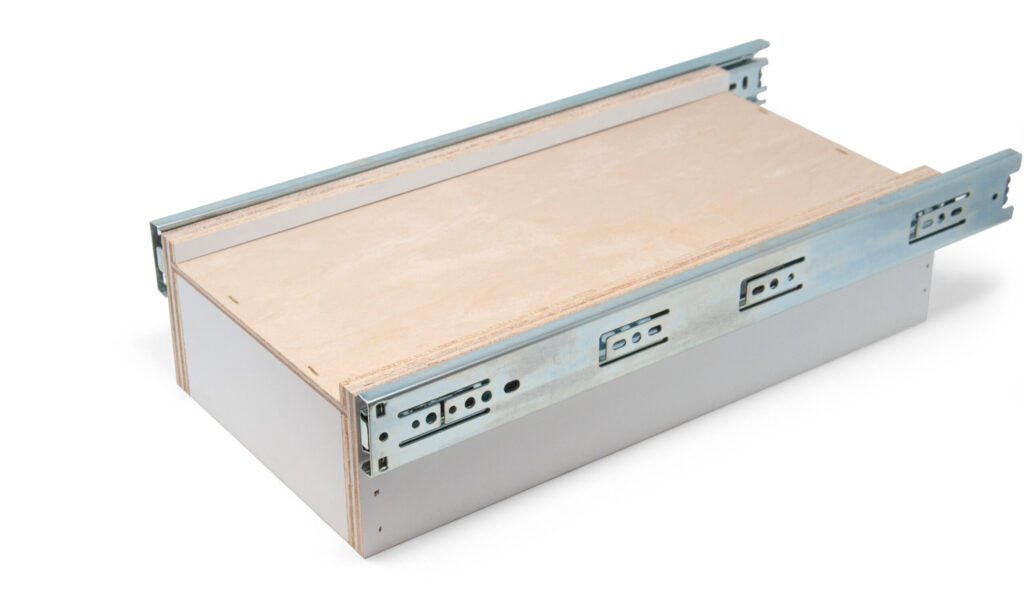

DRAWER
GUIDES
FULL EXTENSION
DRAWER GUIDES
PARTICLE BOARD BOX
HALF CAPTIVE JOINT
- ⅝” thick drawer sides
- ¼” thick MDF drawer bottom
- white-faced TFL particle board and MDF
PLYWOOD BOX
HALF CAPTIVE JOINT
- ½” thick drawer sides, natural birch
OR - ⅝” thick drawer sides, white vinyl wrapped
- ¼” thick drawer bottom
FULL CAPTIVE DOVETAIL MATERIAL
- ½” thick drawer sides, natural birch only
- ¼” thick drawer bottom, natural birch only
GUIDE FEATURES
- standard self-close
- full extension
- 100 lb. class rated static load guide
- bright zinc, cold-rolled steel
- lever disconnect
- 18″ max drawer width
- KCMA, BHMA, BIFMA, ANSI
| BY DRAWER CONSTRUCTION | GUIDES | ⅝" PB SIDES | ⅝" PLY SIDES | ½" PLY SIDES | SEPARATE | ¼" MDF BOTTOM | ¼" PLY BOTTOM | ¼" PLY BOTTOM |
|---|---|---|---|---|
| HALF CAPTIVE BUTT | SIDE MOUNT, BALL BEARING, STANDARD CLOSE, FULL EXTENSION | X | X | X |
| FULL CAPTIVE DOVETAIL | X | |||
| FULL CAPTIVE BUTT | UNDERMOUNT, SOFT CLOSE, FULL EXTENSION, | X | X | X |
| FULL CAPTIVE DOVETAIL | X |
MDF: White (TFL) Thermally-fused laminate-faced (MDF) Medium Density Fiberboard
PLY: Birch Plywood (natural) white wrapped in Butt Joint construction only, no Dovetail
PB: White TFL-faced Particleboard.

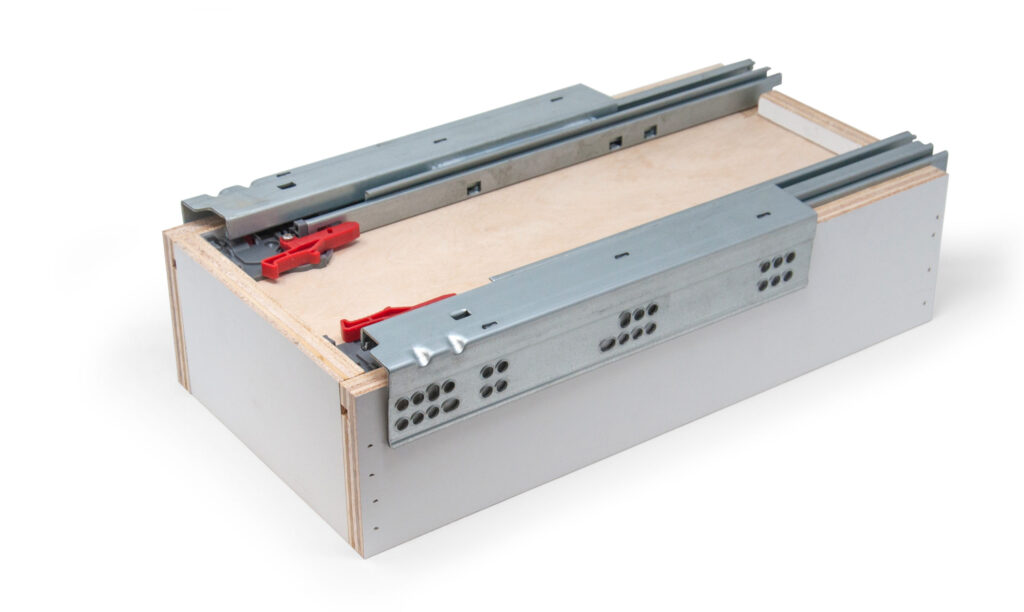

UNDERMOUNT
DRAWER GUIDES
PARTICLE BOARD BOX
FULL CAPTIVE BUTT JOINT
- ⅝” thick drawer sides
- ¼” thick MDF drawer bottom
- white-faced TFL particle board and MDF
PLYWOOD BOX
FULL CAPTIVE BUTT JOINT
- ½” thick drawer sides, natural birch
OR - ⅝” thick drawer sides, white vinyl wrapped
- ¼” thick drawer bottom
FULL CAPTIVE DOVETAIL MATERIAL
- ½” thick drawer sides, natural birch only
- ¼” thick drawer bottom, natural birch only
GUIDE FEATURES
- soft-close (activated at 2 inches)
- full extension
- 100 lb. class rated static load guide
- bright zinc, cold rolled steel
- concealed ball bearing
- lever disconnect
- KCMA, BHMA, BIFMA
| BY GUIDE TYPE | DRAWER CONSTRUCTION | ⅝" PB SIDES | ⅝" PLY SIDES | ½" PLY SIDES | SEPARATE | ¼" MDF BOTTOM | ¼" PLY BOTTOM white vinyl | ¼" PLY BOTTOM |
|---|---|---|---|---|
| SIDE MOUNT, BALL BEARING, STANDARD CLOSE, FULL EXTENSION | HALF CAPTIVE BUTT | X | X | X |
| FULL CAPTIVE DOVETAIL | X | |||
| UNDERMOUNT, SOFT CLOSE, FULL EXTENSION, | FULL CAPTIVE BUTT | X | X | X |
| FULL CAPTIVE DOVETAIL | X |
MDF: White (TFL) Thermally-fused laminate-faced (MDF) Medium Density Fiberboard
PLY: Birch Plywood (natural) white wrapped in Butt Joint construction only, no Dovetail
PB: White TFL-faced Particleboard.
The Kitchen Cabinet Manufacturers Association (KCMA) tests drawers and drawer guides with 15 pounds per square foot of drawer load and operates the drawer repeatedly (25,000 cycles) to test for durability and load handling capabilities. The drawers and guides we offer at Lanz Cabinets are designed to meet or exceed these specifications. Please see your chosen guide for actual details and limitations.
