UNDER CABINET

APPLIED PANEL LIGHTING

Introducing the new undercabinet applied panel lighting: warm LED tape light enclosed between a protective PVC channel and opal white diffuser shade. The light is routed into a separate panel from the cabinet, which is then applied to the underside of the case, creating a low profile under cabinet lighting.

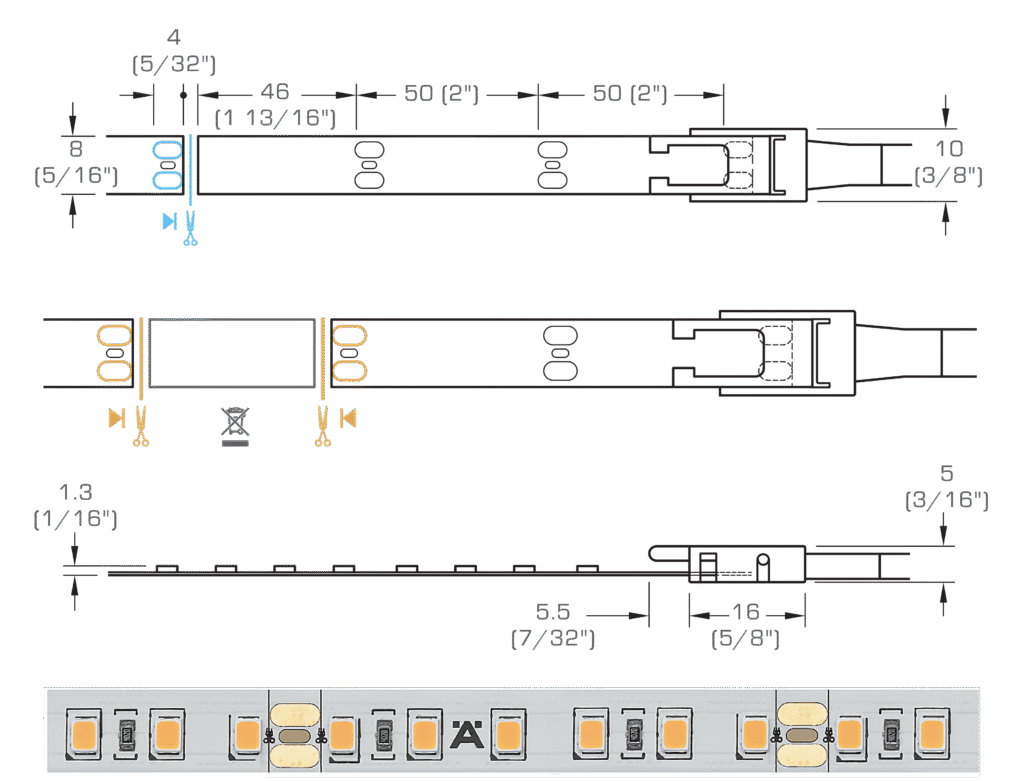

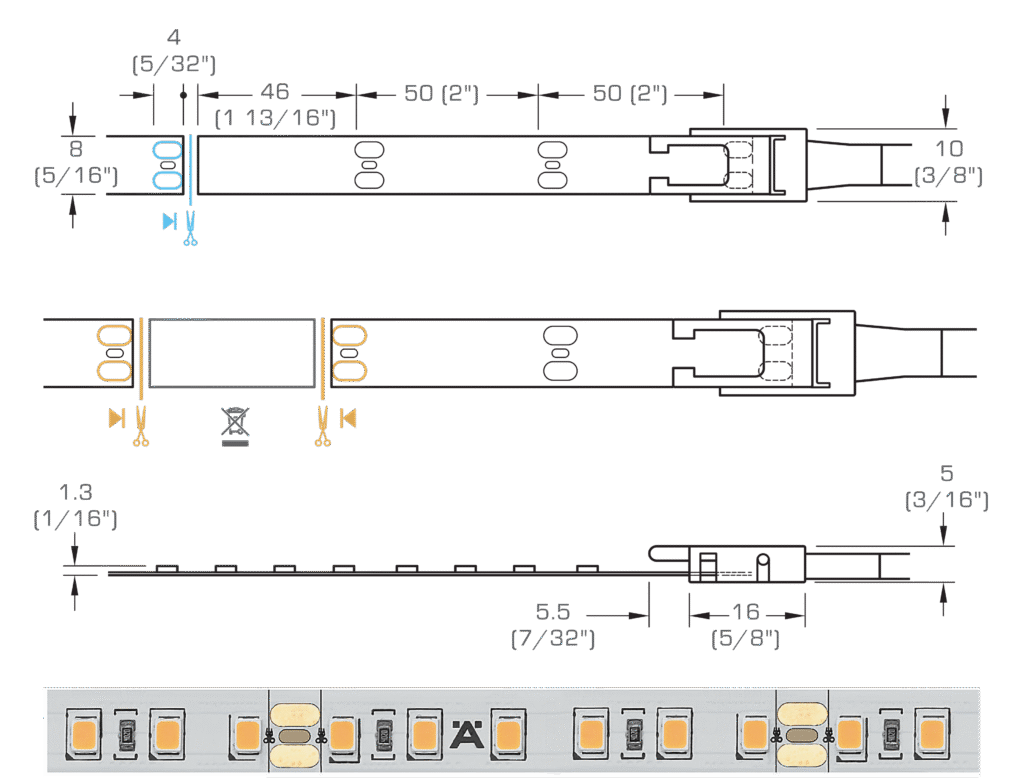

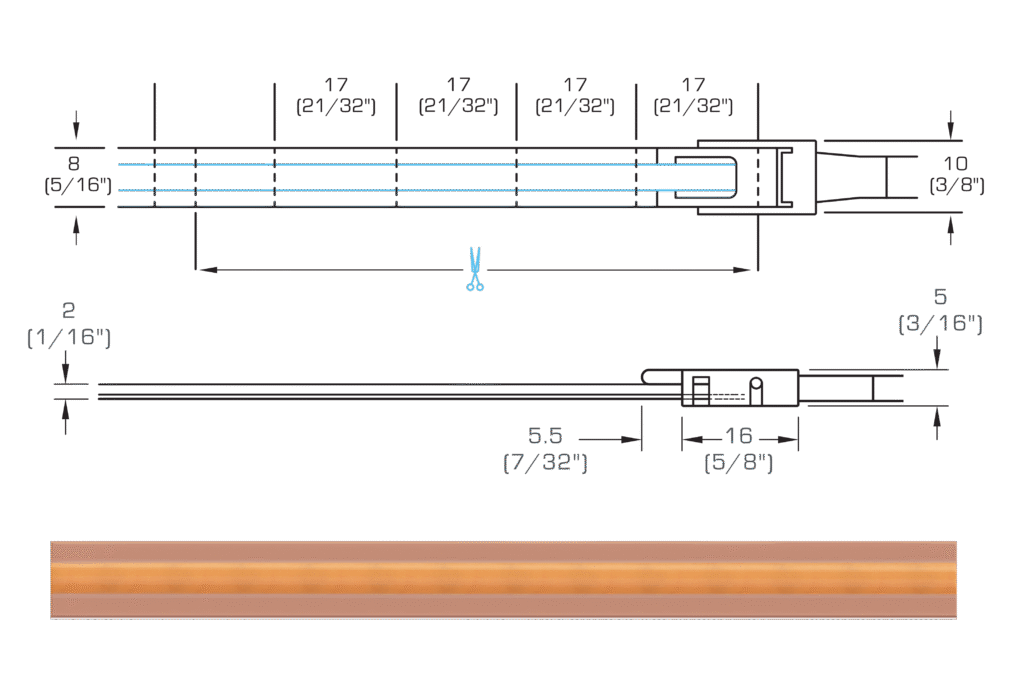

Cut LED strip light to length
(one contact side remains on the remainder piece; reusable)

RECESSED LIGHTING

Uniform Light Output
Wattage: 9.6 W/m; 3 W/ft.
LED dots are not visible

  • Equipped With High Quality Samsung® LEDs
  • Color Rendering Index: Ra: >90
  • Color Rendering Index: R9: >50
  • Degree Of Protection: Ip20
  • Lifetime: >50,000 H
  • Width: 8 mm (5/16″)
  • Height: 2 mm (1/16″)
  • Material/Color: Plastic
  • Mounting: Self-Adhesive
  • Supplied With: 1 Roll
  • Can Be Shortened Every 50 Mm (2″)
COLOR TEMP. LUMINOUS FLUX LUMINOUS EFFICACY LENGTH
3000K 900 LM/M | 274 LM/FT. 94 LM/W 5M (196 7/9") | 50M (1968 1/2")

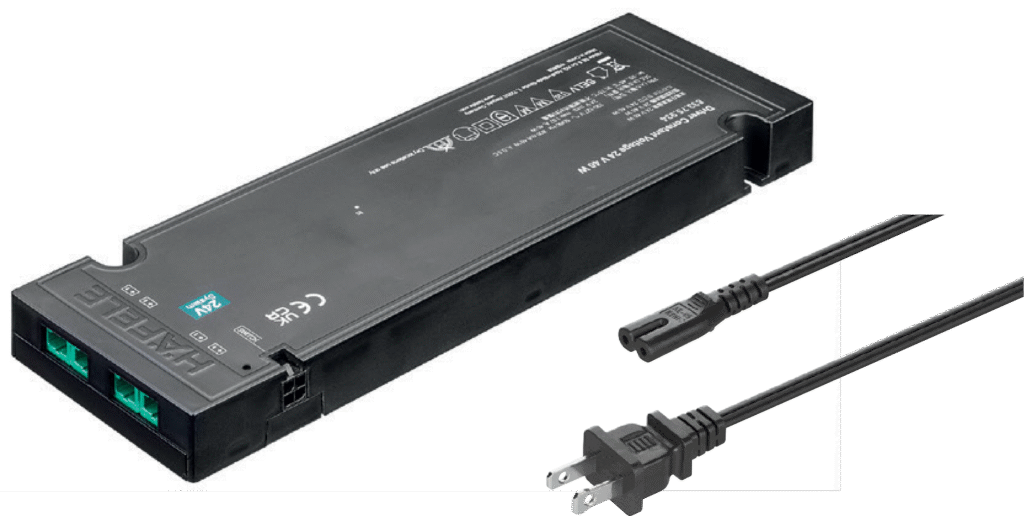

DRIVER

24 V 4-PORT SERIES

  • Input Voltage: 100–127 V~; 50–60 Hz
  • Output Voltage: Dc 24 V +/- 3%
  • Degree Of Protection: Ip20
  • Number Of Connections:
  • 4 X 2-Pin Sockets
  • 1 X Switch Port
  • Lifetime: 30,000 Hours
  • Safety: Class 2 With Overload Protection
  • Material/Color: Plastic, Black
  • Supplied With:
  • 1 Driver With Mounting Accessories
  • 1 Us Power Cord With C7 Socket
OUTPUT POWER OUTPUT CURRENT STANDBY CONSUMPT. L x W x H
40W 1.67A ≥ 0.10 W 190mm (7 1/2") x 60mm (2 3/8") x 16mm (5/8")

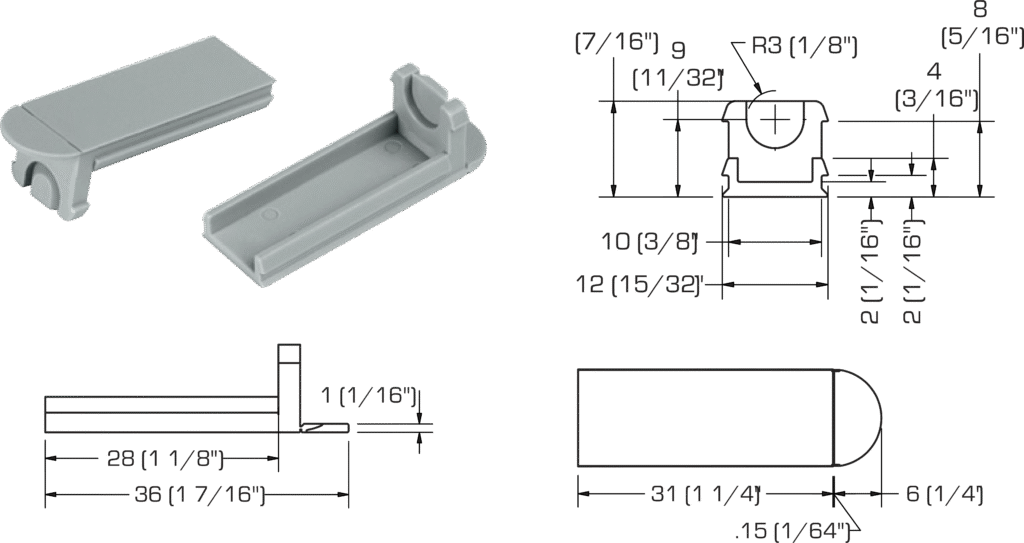

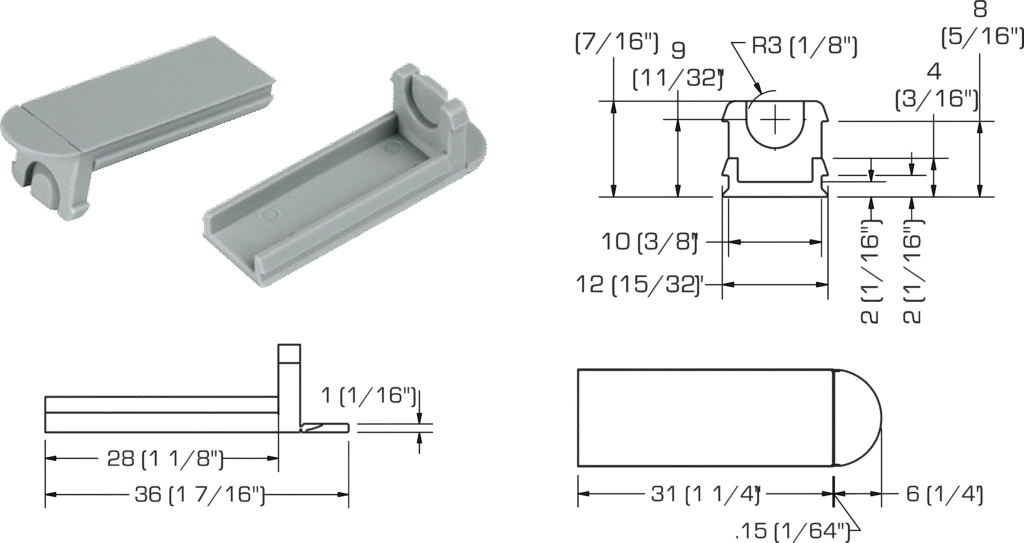

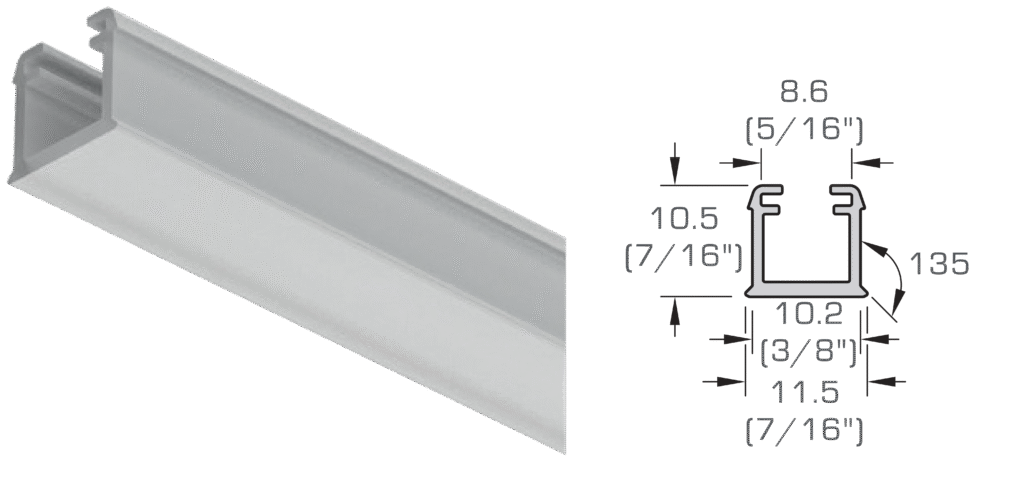

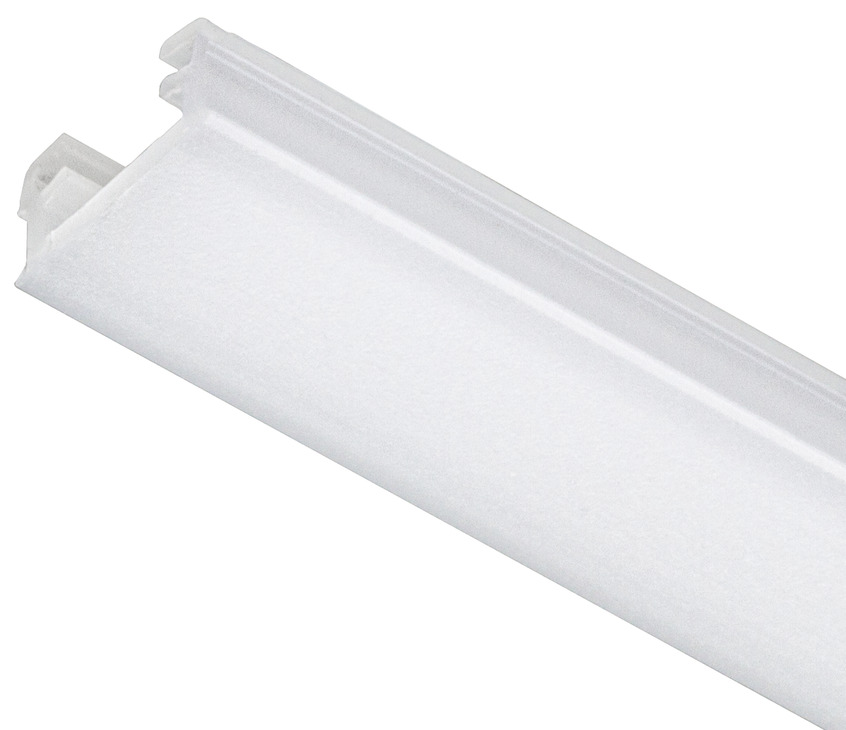

DIFFUSER & END CAPS

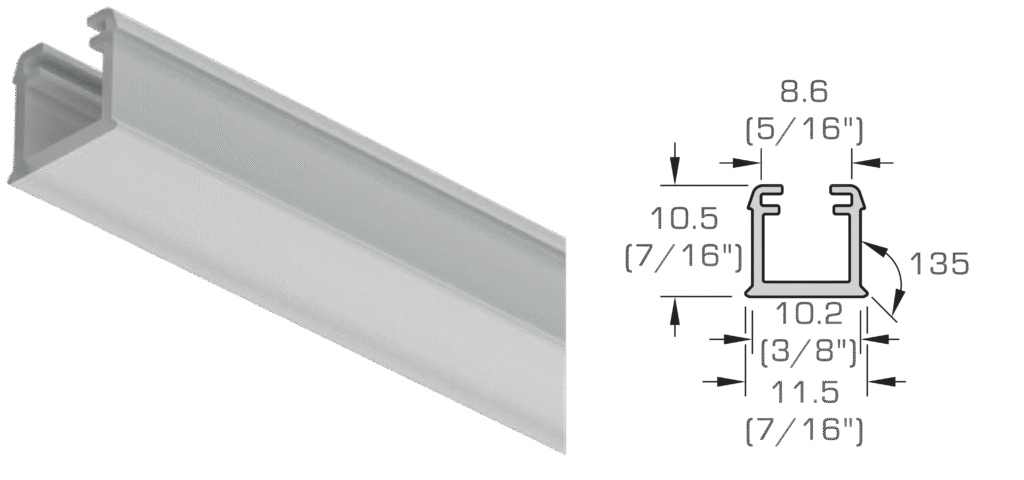

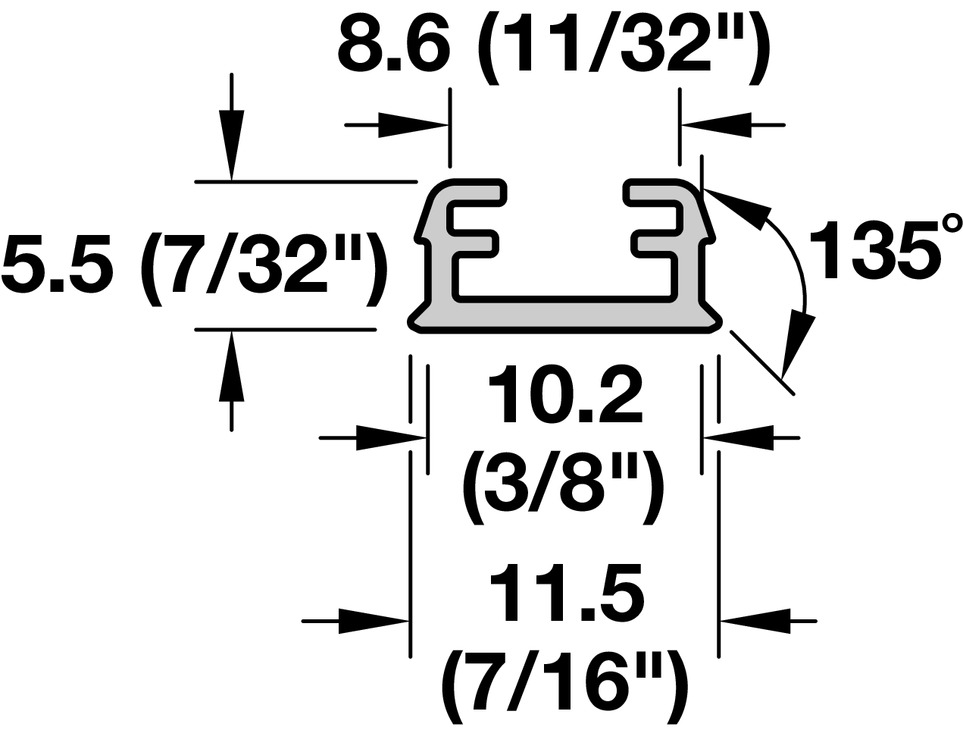

RECESS MOUNT PROFILE

Routing Dimensions W x D: 11 x 11 mm (7/16″ x 7/16″)

  • For use with 8 mm (5/16″) LED strip lights with max. 9.6 W/m (3 W/ft.)
  • Length: 2.337 m (92″)
  • Material: Plastic

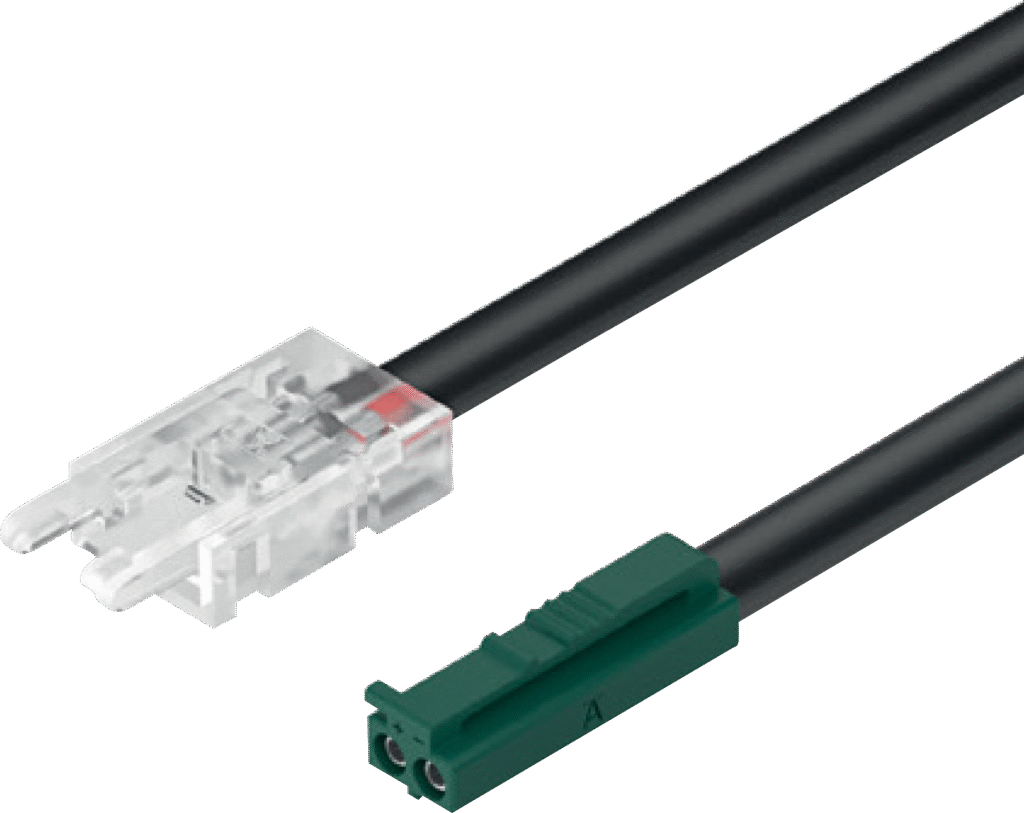

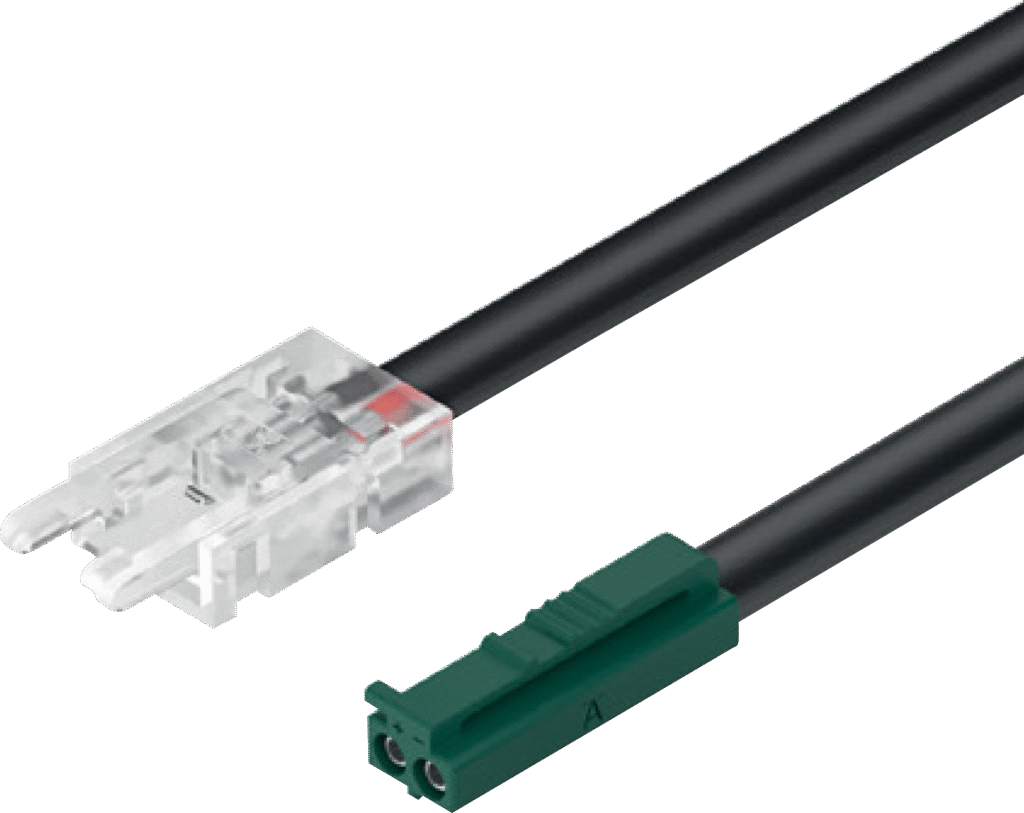

POWER LEAD

led 3072 connector

  • 5 A/18 Awg Lead
  • Supplied With: 1 Lead, Clip/Plug
LENGTH
2m (78 3/4")
