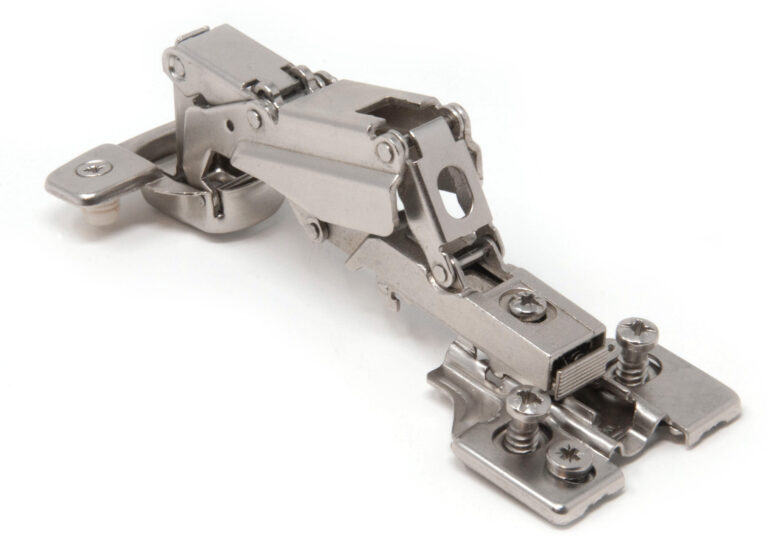

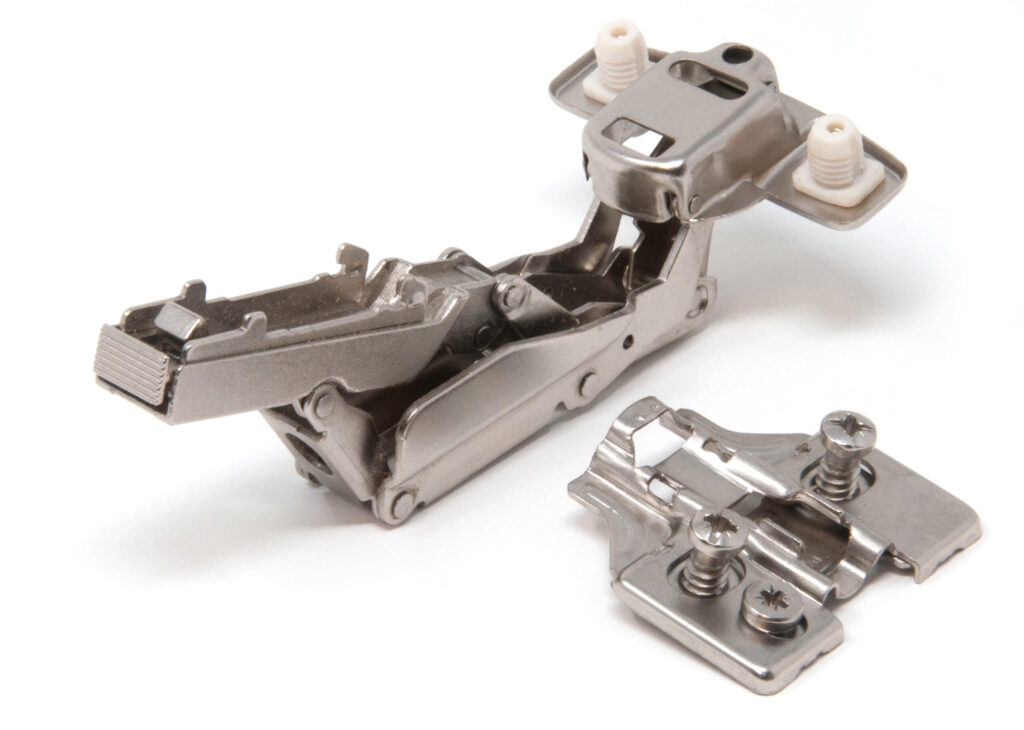

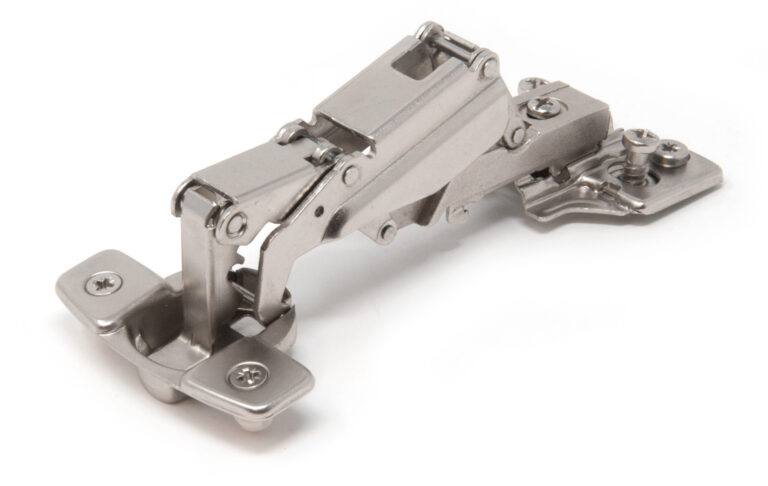

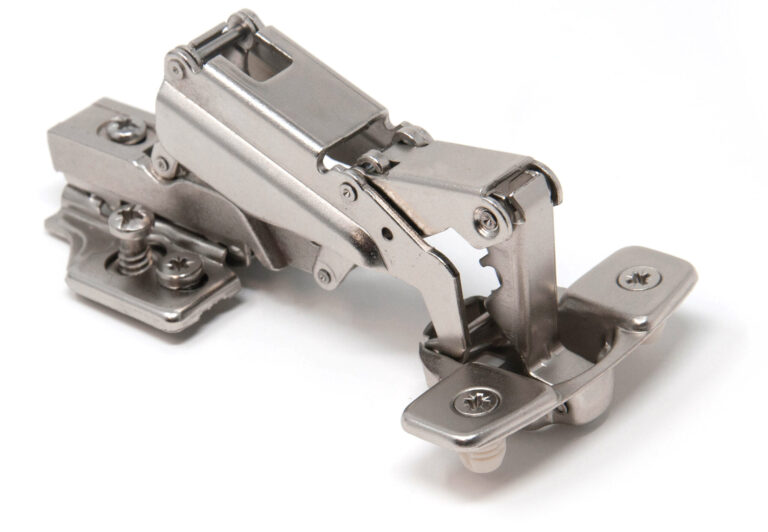

165° EUROPEAN CONCEALED HINGE
Lanz offers 165° hinges that are concealed and easily adjustable for a level fit. This allows for the door to open wider for extended reach and flexibility in use.
FEATURES
- 35mm (two-way click-on with cam)
- Press-in Dowel (inserted by automatic machinery)
- Three dimensional adjustments for effortless alignments. Patented parallel side-to-side adjustment of +4.5mm to -1.5mm via hinge arm screw
- Standard close (available in soft close 155° opening)
- For full overlay
- Exceeds ANSI/BHMA Grade 2 standards and meets ISO9001 and ISO14001 environmental certifications
- Nickel-plated steel for corrosion resistance
- Permanently self lubricating utilizing
environmentally safe lubricants
SPECIFICATIONS:
- Opening angle: 165°
- Closing type: standard self closing
- Depth of hinge cup: 11 mm
- Diameter of hinge cup: 35 mm
- Drilling distance for door (K): 3-6mm
- Range of door thickness: 16-26mm
- Material: nickel-plated steel
