CONCEALED
HINGES
Lanz standard hinges are concealed and easily adjustable for a level fit. Available in standard and soft close they open over 105 degrees.
SELF-CLOSING
HINGES
Self-closing cabinet door hinges contain a small spring that pulls the door into contact with the cabinet box or frame. With applying a minimal amount of pressure, the door closes itself using a smooth, gliding motion. While the door closes easily and completely, it makes a slight audible sound when the door bump hits the cabinet because the self-closing hinge lacks the noise dampening piston of soft-close hinges.
SOFT-CLOSE
HINGES
Soft-close cabinet door hinges work like self-closing cabinet hinges but with the addition of a piston that absorbs the excess energy. This hydraulic piston mechanism with sound dampers gently guides the door through the arc of the swing and into contact with the cabinet minimizing the noise of the door shutting while also extending the lifespan of the doors.

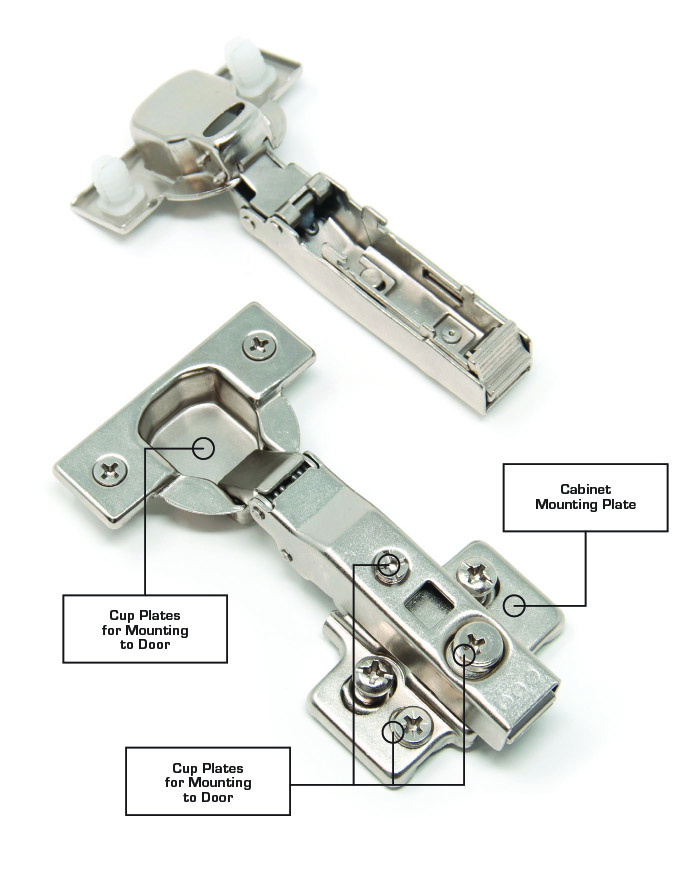

STANDARD HINGE
SOFT CLOSE HINGE
FRAMELESS
CONCEALED HINGES
FEATURES:
- 35mm (Two-way click-on with cam)
- Press-in Dowel (Inserted by automatic machinery)
- 3 Dimensional adjustments for effortless alignments

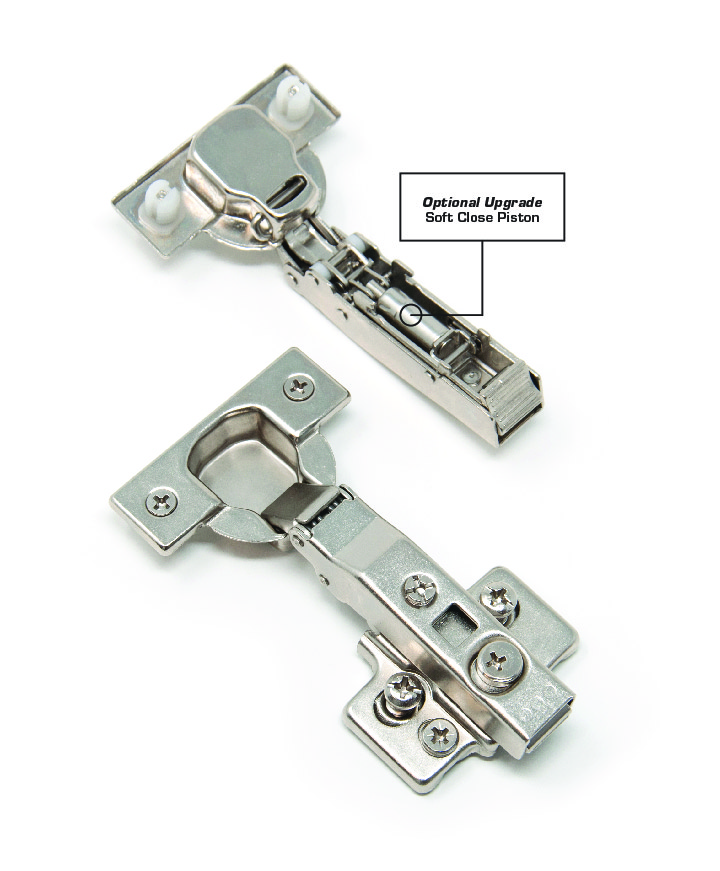

- OPTIONAL UPGRADE: Soft-close Piston

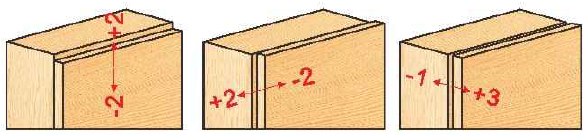

ADJUSTMENT:
- Height Adjustment: +2mm -2mm
- Side Adjustment: +2mm -2mm
- Depth Adjustment: +3mm -1mm
SPECIFICATION:
- Opening Angle: 110°
- Closing Type: Soft Closing
- Depth of Hinge Cup: 11.5mm
- Diameter of Hinge Cup: 35mm
- Drilling Distance for Door (K): 3-6mm
- Range of door thickness: 16-26mm

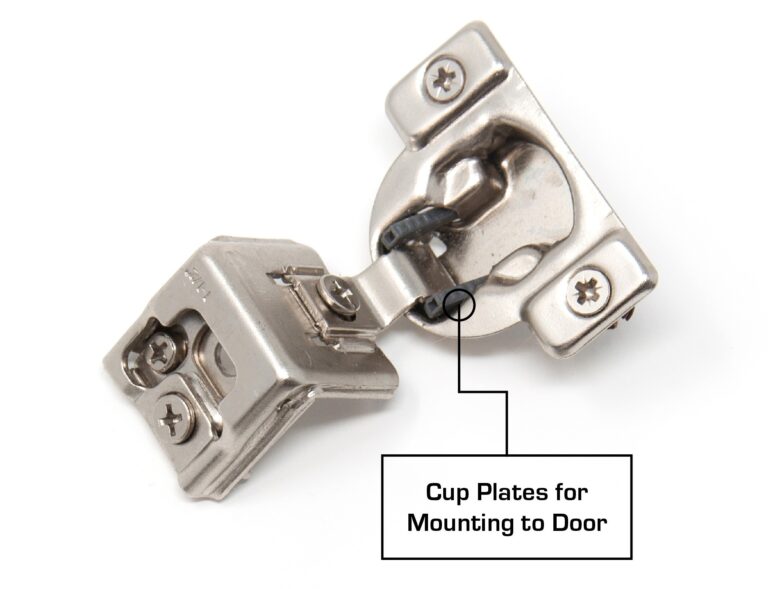

STANDARD HINGE
SOFT CLOSE HINGE
FACE FRAME
CONCEALED HINGES
FEATURES:
- 3 Cam, 6-way adjustable
- Full overlay
- Press-in hinges (inserted by automatic machinery)

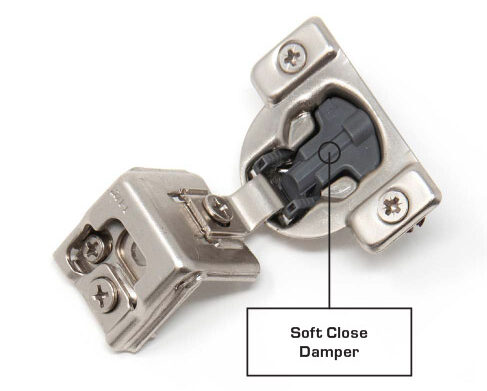

- OPTIONAL UPGRADE: Soft-closing damper
SPECIFICATION:
- Opening Angle: 110°
- Closing Type: Soft Closing
- Depth of Hinge Cup: 11.5mm
- Diameter of Hinge Cup: 35mm
- Drilling Distance for Door (K): 3-6mm
- Range of door thickness: 16-26mm
